Factory Drywall
Robert contacted us to assist with factory drywall and installation at Cirebelle in Robertville as part of their project for sieve, production, quality inspection and sorting rooms.
They already had a clear picture in mind of what they required but also required a solution for moving forklifts into the different rooms as part of the production process planning.

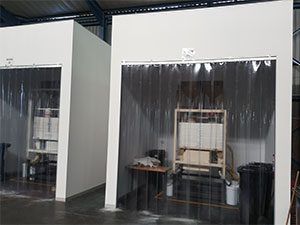

PVC curtains was installed into the factory drywall as an solution and re-enforcement had to be fitted where required.
After all was completed 75mm aluminium skirting was fitted .
The factory drywall was then painted one coat plaster primer and two coats low sheen white paint.
As can be seen the final product was not only functional but also aesthetically pleasing and met the desired outcome of client and also their required processes.
The factory drywall was created from galvanized floor track which was fixed to the floor with nail in screws, aluminium natural anodized wall channel fitted to the ceilings and walls where required and galvanized studs as per supplier recommendation. Corner sections done with galvanized angle and all secured with drywall screws.
It needs to be noted that accuracy when constructing the factory drywall is of utmost importance. If the structure is poorly constructed the end product will be of poor visual quality. After the structure was completed 12.5mm Gypsum board cladding was used.
The windows fitted had natural black powder coated aluminium frames and 6.38mm safety glass.
The double doors fitted had natural anodized aluminium frames, natural anodized hinges, medium duty hollow core doors and standard lock sets with dead bolts.
Joint was then fiber taped and two coats Rhinoglide applied. Once dry, the joints was sanded to a smooth finish in preparation of painting of the factory drywall.
Well done to the team!!!
