Partitions
Mr Best contacted us to assist with partitions and installation at Best Lasers in Mooikloof as part of their new offices.
He already had a clear picture in mind of the layout required and had plans already drawn up.
The new partitions was installed in an empty shell of the new offices.Acoustic insulation was placed in the walls to ensure privacy for their clients and confidentiality during management meetings.
The partitions was fixed to existing wall, pillars and ceiling with standard door frames fitted.
After the installation was completed the electrical articulation was completed .
The partitions was then painted and Belgotex Berberpoint 920 carpets installed.

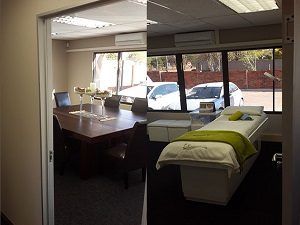

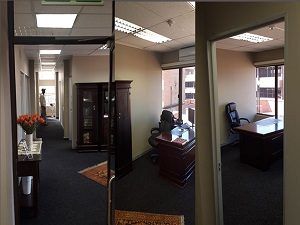

As can be seen the final product was not only functional but also aesthetically pleasing and fully caters for Mr Best’s business.
The spartitions was created from galvanized floor track which was fixed to the floor with nail in screws, aluminium natural anodized wall channel fitted to the ceilings and walls where required and galvanized studs as per supplier recommendation. Corner sections done with galvanized angle and all secured with drywall screws.
It needs to be noted that accuracy when constructing the partitions is of utmost importance. If the structure is poorly constructed the end product will be of poor visual quality. After the drywalling structure was completed 12.5mm Gypsum board cladding was used.
Windows was fitted using natural anodized aluminium glazing sections, natural anodized beads, bubble gasket and 6.38mm safety glass.
Doors fitted had natural anodized aluminium frames, natural anodized hinges, medium duty hollow core doors and standard lock sets.
Joint was then fiber taped and two coats Rhinoglide applied. Once dry, the joints was sanded to a smooth finish in preparation of painting of the partitions.
It was an absolutely a pleasure not only meeting Mr Malan but to be honored to do this project for him.
Well done to the team!!!
